304/316 Stainless Steel Cross

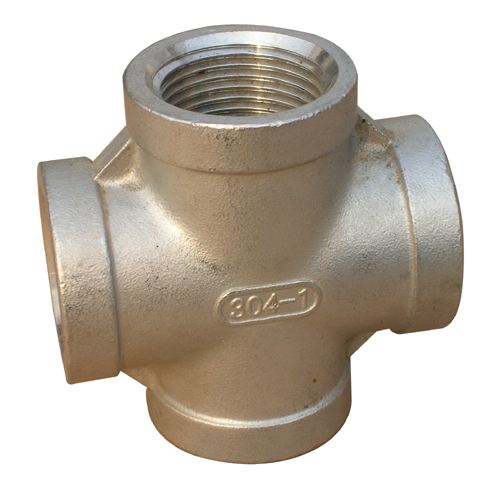

PIC-(304/316 Stainless Steel Cross)
304/316 Stainless Steel Cross
Type: Equal
Connection: Female
Material: Stainless Steel
Shape: Equal Tee
Lateral: 90°Tee
Finish: Stainless
Technics: Casting
Pressure Rating: 2000LBS
Standard: ANSI
Certification: ISO, CE
Trademark: Shengtian
Transport Package: Cartons in Palltes
Specification: BS, DIN, MSS-S114, ANSI, JIS
Origin: China
| SIZE | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 |
| θ1 | 13 | 16.5 | 20 | 24.5 | 30 | 37.5 | 46.5 |
| L | 17 | 19 | 23 | 27 | 32 | 38 | 45 |
| T | 2.5 | 2.5 | 2.8 | 1.65 | 1.75 | 2 | 2.25 |
